This is the  final blog-post of the series (for previous parts see here and here). As promised, here we will see the implementation of Reinforcement Learning through Behavior Tree (in natural Unreal Engine environment). The method written is fairly general and can  be used to generate BT corresponding to any RL based algorithm.

The k-armed bandit (which for our case turns into shooting colored boxes) algorithm can be categorized into 5 tasks.

1. Select a box (based on probabilities and estimates)
2. Rotate towards box (for more complex, locomotion may be involved)
3. Shoot the box
4. Wait (for reward assesement)
5. Update the estimates

The tree built  with this categorization of the tasks is shown in figure

The Engine also provides an powerful interface for Blueprints to interact with C++. This is a good way to unify the artistic and programming development of a game. We will show that in real time here.

Consider the task BTTask_FindAppBox node. The Blueprint implementation is shown in the figure

In the Engine, every BT task starts with the node Event Receive Execute AI. So we start with that and  make the connection to Cast node yielding the object corresponding to class MAIPlayerController. Once that is done, we invoke the C++ method through the node Look for App Box and by  setting the target pin as the casted object. The C++ method is posted here.

Similarly rest of the three tasks (except the Engine default task Wait) are implemented through this C++-Blueprint interface. Another example is BTTask_UpdateEstimates

with the corresponding C++ code posted here.

Blackboard is a very efficient tool utilized by AI agent for generating appropriate behavior. In this blog-post I shall demonstrate the Unreal Engine code, in action, using the BlackBoard class.

First we initialize the BlackBoard object in the following fashion with line 8

void AMAIController::SetGameRep(AMAIGameState *GR)
{
MAIGameRep = GR;

// setup blackboard component
if(!MAIGameRep->GetBlackBoard())
{
UBlackboardComponent* BB = NewObject(this, TEXT("BlackboardComponent"));
if(BB)
{
BB->RegisterComponent();
MAIGameRep->SetBlackBoard(BB);

UBlackboardData* BlackboardAsset = NewObject(BB);
BlackboardAsset->UpdatePersistentKey(FName("PlayerScore"));
BB->InitializeBlackboard(*BlackboardAsset);
}
}

}

Then, we register the component with line 11 and declare the UBlackBoardData with line 14.  Next we add the key PlayerScore in the UBlackBoardData and finally initialize the BlackBoard with the asset. This is the code equivalent to the editor state shown below

The BlackBoard keys can be accessed by the code

GetGameRep()->GetBlackBoard()->GetValueAsFloat(FName("PlayerScore"));

The idea behind the BlackBoard is to provide a scratch work space with relevant data, required for the decision making purposes. Furthermore it is equipped with the ability to send notifications once data has been updated and cache the calculations saving redundant CPU processing time and power.

BlackBoard can be shared among several AI instances. It basically provides a common ground for all the AI instances to operate in collaborative manner. This gives rise to new collective behavior leading to more realistic gameplay and recreation.

Next, we  want to focus our attention towards Reinforcement Learning algorithms which are more or less dormant in the game AI  world (I really don’t have the clue why). But good news is that people are now gearing towards its implementation in game Engines (Unity seems first one to include that). For more information watch this video. There have been some white papers based on RL in game AI for instance Capture The Flag: the emergence of complex cooperative agents and Implementing Reinforcement Learning in Unreal Engine 4 with Blueprints.

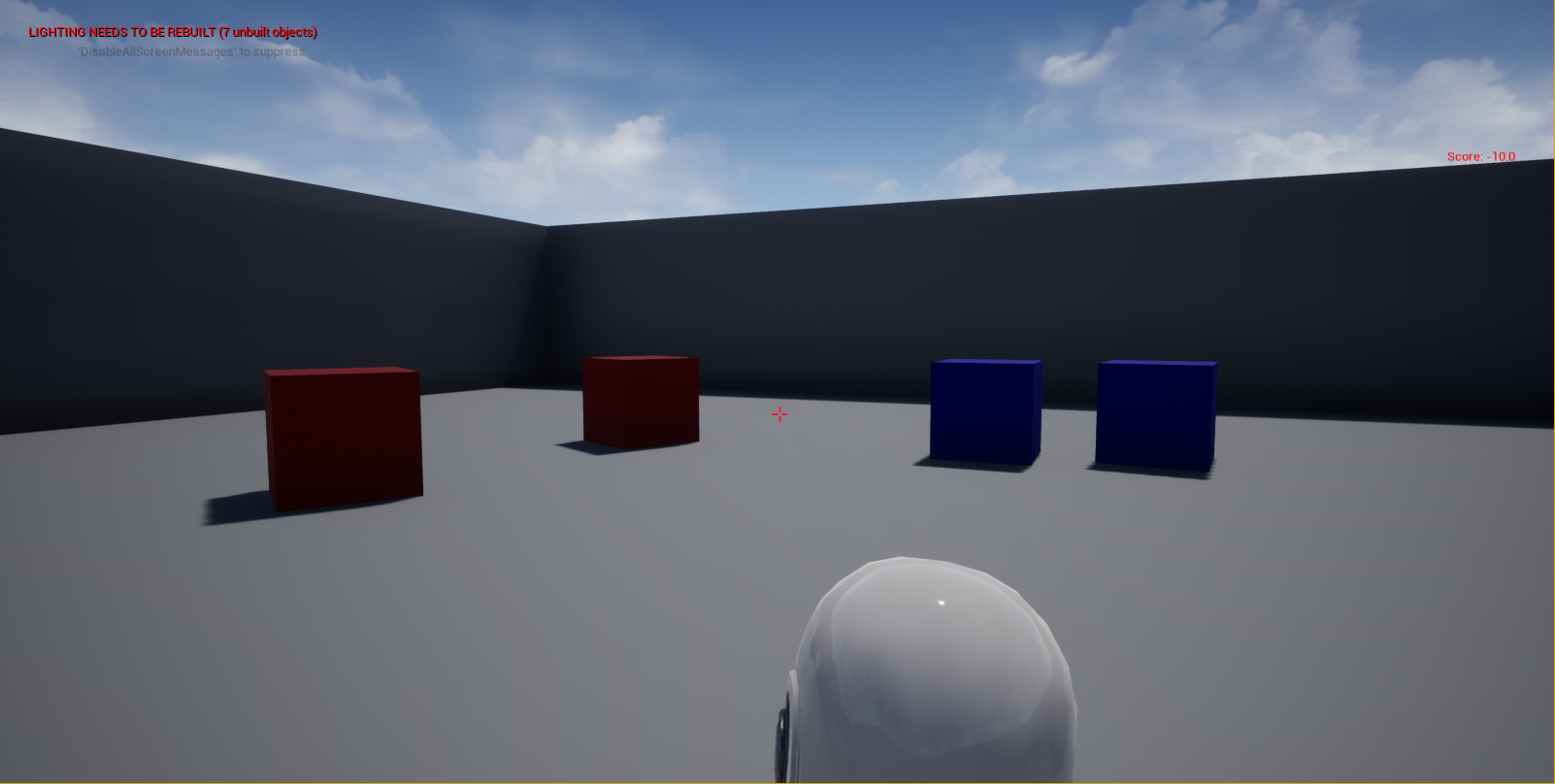

Using the BlackBoard class, I applied Reinforcement Learning on Unreal Engine AI controller which is shown in the video below

The aim was to train the AI to shoot red boxes without actually coding it. This is called emergent behavior which was not included in the compiled code, but based on the rewards, AI learnt to shoot red boxes! More information on how I implemented RL will follow in the sequel blog-post. Stay tuned.
